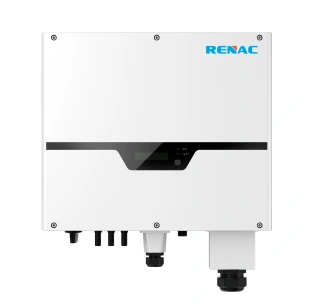

RENAC R3-12K-DT Solarni inverter

689,60 €

Šifra Proizvoda: RENAC-R3-5

Kategorija: Pretvarači

Stanje proizvoda:

O proizvodu

RENAC inverter trofazni R3

WEB RENAC Klikni

NAPOMENA : PDV 0% URAČUNAT U CIJENU OPREME SA MONTAŽOM

Product Characteristics

Model No.

R3-4K-DT

R3-5K-DT

R3-6K-DT

R3-8K-DT

R3-10K-DT

R3-12K-DT

R3-15K-DT

Warranty

Product Warranty (Min)

5 Years

5 Years

5 Years

5 Years

5 Years

5 Years

5 Years

Input Data(DC)

Max. DC Power

5.2 kW

6.5 kW

7.8 kW

10.4 kW

13 kW

15.6 kW

19.5 kW

Max. DC Voltage

1000 V

1000 V

1000 V

1000 V

1000 V

1000 V

1000 V

Min. DC Voltage to Start Feed In

160 V

160 V

160 V

160 V

160 V

160 V

160 V

Max. DC Current

25 A

25 A

25 A

25 A

25 A

25 A

32.5 A

MPP(T) Voltage Range

160~950 V

160~950 V

160~950 V

250~950 V

250~950 V

250~950 V

250~950 V

No of MPP Trackers

2

2

2

2

2

2

2

DC Inputs

2

2

2

2

2

2

3

Output Data (AC)

?Max. AC Power

4.4 kW

5.5 kW

6.6 kW

8.8 kW

11 kW

13.2 kW

16.5 kW

Max. AC Current

6.4 A

8 A

9.6 A

12.8 A

16 A

19.2 A

24 A

Frequency Range

45-65 Hz

45-65 Hz

45-65 Hz

45-65 Hz

45-65 Hz

45-65 Hz

45-65 Hz

Frequency

50, 60 Hz

50, 60 Hz

50, 60 Hz

50, 60 Hz

50, 60 Hz

50, 60 Hz

50, 60 Hz

Power Factor (cos?)

0.8

0.8

0.8

0.8

0.8

0.8

0.8

Distortion (THD)

< 3 %

< 3 %

< 3 %

< 3 %

< 2 %

< 3 %

< 3 %

No of feed-in phases

3

3

3

3

3

3

3

Max. Efficiency

98.3 %

98.3 %

98.3 %

98.3 %

98.3 %

98.3 %

98.3 %

Euro Efficiency

97.6 %

97.6 %

97.6 %

97.6 %

97.8 %

97.8 %

97.8 %

General Data

Dimensions (H/W/D)

3950x455x160 mm

390x455x160 mm

390x455x160 mm

390x455x175 mm

390x455x175 mm

390x455x175 mm

390x455x190 mm

Weight

16.3 kg

16.3 kg

16.3 kg

18.3 kg

18.3 kg

18.3 kg

21.6 kg

Noise Level

< 30 dB(A)

< 30 dB(A)

< 30 dB(A)

< 30 dB(A)

< 30 dB(A)

< 30 dB(A)

< 30 dB(A)

Operating Temperature

-25 ~ +60 ?

Transformer

Transformerless

Protection Class

IP65

Humidity

0-100 %

Cooling

Natural

Max. Altitude

4000 m

Interface

RS 485, WLAN

Display

LCD

Protection Features

Protection Features

Anti Island Protection(ENS), Overvoltage Protection, Overcurrent Protection, Overtemperature Protection, Reverse Polarity Protection, Surge Protection
