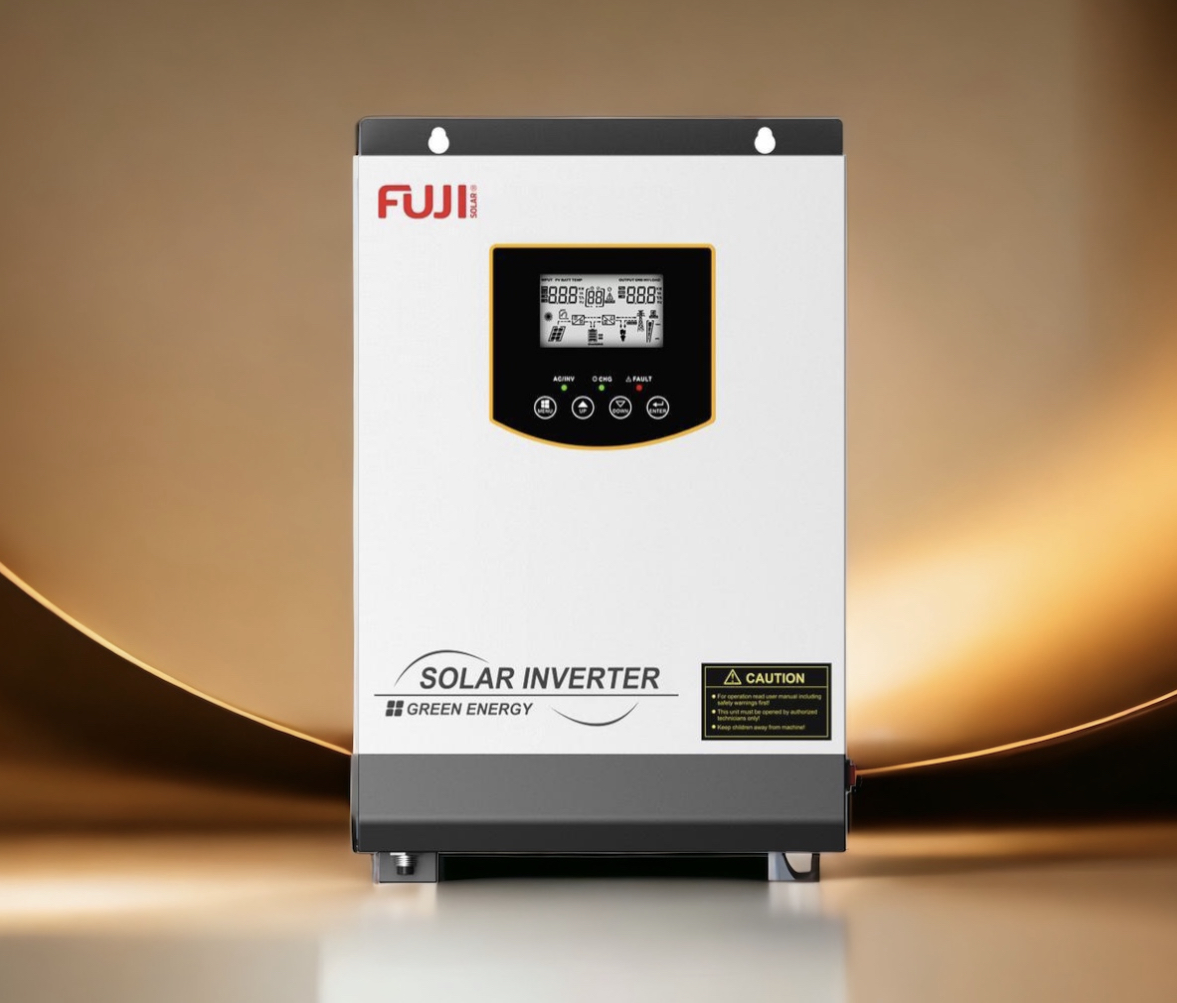

FUJI Inverter 3kW 24V
O proizvodu
kW 24V Inverter FUJI Profi
FUJI 3kW 24V OFFGRID pretvarač punjač regulator
Vise info
|
MODEL FUJI |
FU-PV18-3024 PRO |
FU-PV18-5248 PRO |
|
Nominal Battery System Voltage |
24VDC |
48VDC |
|
INVERTER OUTPUT |
||
|
Rated Power |
3000VA / 3000W |
5200VA / 5200W |
|
Surge Power |
6000W |
10400W |
|
Waveform |
Pure sine wave |
|
|
AC Voltage Regulation (Batt.Mode) |
230VAC±5%(Setting) |
|
|
Inverter Efficiency(Peak) |
93% |
|
|
Transfer Time |
10ms (UPS / VDE4105) / 20ms (APL) |
|
|
AC INPUT |
||
|
Voltage |
230VAC±5% |
|
|
Selectable Voltage Range |
170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VED4105) |
|
|
Frequency Range |
50Hz / 60Hz(Auto sensing) |
|
|
BATTERY |
|
|
|
Normal voltage |
24VDC |
48VDC |
|
Floating Charge Voltage |
27.4VDC |
54.8VDC |
|
Overcharge Protection |
30VDC |
60VDC |
|
SOLAR CHARGER & AC CHARGER |
||
|
Maximum PV Array Open Circuit Voltage |
450VDC |
|
|
Maximum PV current |
18A |
|
|
PV Array MPPT Voltage Range |
150~430 VDC |
|
|
Maximum Solar Charge Current |
80Amp |
|
|
Maximum AC Charge Current |
60Amp |
|
|
Maximum Charge Current |
80Amp |
|
|
MECHANICAL SPECIFICATIONS |
||
|
Machine Dimensions (W*H*D)(mm) |
272*355*100 |
295*528*121 |
|
Package Dimensions (W*H*D)(mm) |
540*395*241 |
628*425*251 |
|
Net Weight(kg) |
11 |
14 |
|
Gross Weight(kg) |
12 |
15 |
|
OTHER |
||
|
Humidity |
5% to 95% Relative humidity (Non-condensing) |
|
|
Operating Temperature |
0°C~50°C |
|
|
Storage Temperature |
-15?~60?
|
|
