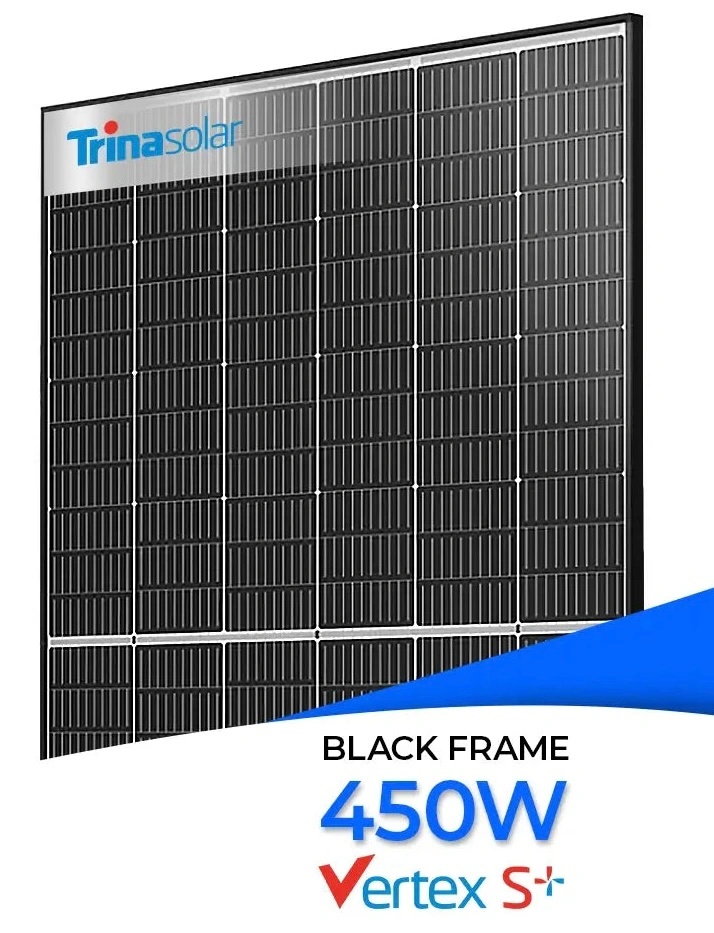

TRINA VERTEX 450W solarni paneli

Name: TRINA VERTEX 450W solarni paneli
SKU: TRINA 450W
Price: 88.92 EUR
Availability: InStock

88,92 €

Šifra Proizvoda: TRINA 450W

Kategorija: Paneli

Stanje proizvoda:

O proizvodu

TRINA VERTEX 450W Na stanju ISPORUKA ODMAH!!

TRINA Solar u SolarShopu TOP PONUDA

Najefikasniji paneli na svijetu

DATASHEET

POPUST i PDV 0% URAČUNAT U CIJENU OPREME SA MONTAŽOM

It's sleek, easy to install and big on power.

An incredible 30 year power warranty.

Dual-glass and n type i-TOPCon technology allow us to offer an industry-leading 30 year power warranty and up to 25 year product warranty.

Product Characteristics

Type

Monocrystalline

Model No.

415W

420W

425W

430W

435W

440W

445W

Warranty

Product Warranty

25 Years

Power Warranty

30 Years of 87.4% Output Power

Electrical Data at STC

Maximum Power (Pmax)

415 Wp

420 Wp

425 Wp

430 Wp

435 Wp

440 Wp

445 Wp

Voltage at Maximum Power (Vmpp)

42.1 V

42.5 V

42.9 V

43.2 V

43.6 V

44 V

44.3 V

Current at Maximum Power (Impp)

9.86 A

9.89 A

9.2 A

9.96 A

9.99 A

10.01 A

10.05 A

Open Circuit Voltage (Voc)

50.1 V

50.5 V

50.9 V

51.4 V

51.8 V

52.2 V

52.6 V

Short Circuit Current (Isc)

10.5 A

10.53 A

10.56 A

10.59 A

10.64 A

10.67 A

10.71 A

Panel Efficiency

20.8 %

21 %

21.3 %

21.5 %

21.8 %

22 %

22.3 %

Power Tolerance (Positive)

+ 1 %

Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C

Electrical Data at NOCT

Maximum Power (Pmax)

316 Wp

320 Wp

324 Wp

328 Wp

332 Wp

335 Wp

338 Wp

Voltage at Maximum Power (Vmpp)

39.3 V

39.7 V

40 V

40.4 V

40.7 V

41 V

41.3 V

Current at Maximum Power (Impp)

8.03 A

8.07 A

8.09 A

8.11 A

8.15 A

8.17 A

8.2 A

Open Circuit Voltage (Voc)

47.5 V

47.8 V

48.2 V

48.7 V

49.1 V

49.4 V

49.2 V

Short Circuit Current (Isc)

8.46 A

8.49 A

8.51 A

8.53 A

8.57 A

8.6 A

8.63 A

Temperature

43±2 °C

Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C

Thermal Ratings

Operating Temperature Range

-40~85 °C

Temperature Coefficient of Pmax

-0.29 %/°C

Temperature Coefficient of Voc

-0.24 %/°C

Temperature Coefficient of Isc

0.04 %/°C

Maximum Ratings

Maximum System Voltage

1500 V

Series Fuse Rating

25 A

Material Data

Panel Dimension (H/W/D)

1762x1134x30 mm

Weight

21 kg

Cell Number

144

Glass Type

Anti-reflection Coating

Glass Thickness

1.6 mm

Encapsulant Type

EVA

Frame Type

Anodized Aluminium

Junction Box Protection Class

IP 68

Connector Type

MC4

Cable Crossection

4 mm2
